TC386 Dual Spindle CNC Lathe
Dual spindle dual turret lathe
Dual Spindle Lathe

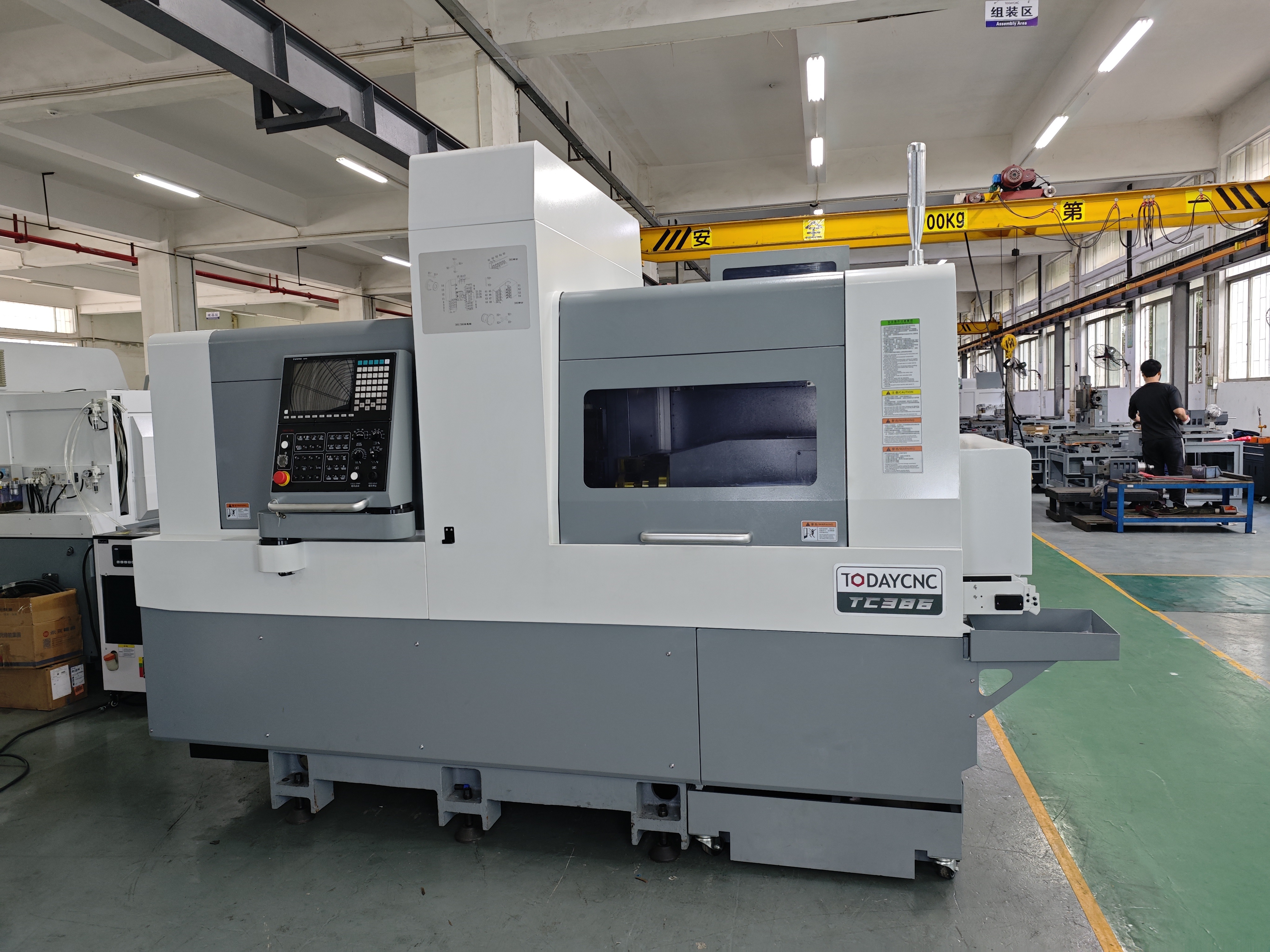

TC386 Customized High Precision Quality Swiss CNC Lathe
TC386
Double spindle
6-axis function
Max machining diameter: 38mm
Motorized spindle
category:
Key words:
TC386 Dual Spindle CNC Lathe
Dual spindle dual turret lathe
Dual Spindle Lathe
Details
INSTALLATION DIAGRAM
|
Cross live tool |
4×ER16 Live tool |
|
Fixed angle holder (end face) |
4×ER16 Fixed tool |
|
Angle adjustment range holder ( 0-90° ) |
3×ER16 Live tool |
TECHNICAL PARAMETER
|
Model |
|
TC386-1 |
|
|
6axis,dual spindle |
|||
|
NC system |
|
FANUC Oi-TF Plus |
|
|
Lathe rated power |
kw |
25 |
|
|
Machining range |
|
|
|
|
Maximum machining diameter |
mm |
φ38 |
|
|
Maximum machining length (one-time clamping)With guide bush |
mm |
320 |
|
|
Maximum machining length (one-timeclamping)Non guide bush |
mm |
85 |
|
|
Max tool installed qty |
|
28 |
|
|
Main/sub spindle |
|||
|
Main spindle power |
kw |
10 |
|
|
Sub spindle power |
kw |
10 |
|
|
Main spindle max through hole dia |
mm |
φ42 |
|
|
Main/sub spindle rev speed |
rpm |
6000 |
|
|
Sub spindle max clamping dia |
mm |
φ38 |
|
|
Sub spindle max through hole dia |
mm |
φ42 |
|
|
Main spindle tool |
|||
|
①OD Turning tool |
Qty x Model |
|
8×▢16+1×▢20 |
|
②Side- Live tool |
Qty x Model |
|
3×ER20+1×ER25 |
|
Drilling dia |
mm |
φ16 |
|
|
Tapping/Threading die dia |
|
M8 |
|
|
Live tool rev speed |
rpm |
4000 |
|
|
Live tool power |
kw |
2.5 |
|
|
③End face fixed tool(optional) |
Qty x Model |
|
6×ER20 |
|
Drilling dia |
mm |
φ13 |
|
|
Tapping/Threading die dia |
|
M10 |
|
|
④Angular drilling head |
mm |
—— |
|
|
⑤Axial drilling and milling tool |
mm |
—— |
|
|
Sub spingdle tool |
|||
|
①End face fixed tool |
Qty x Model |
mm |
4×ER20 |
|
Drilling dia |
mm |
φ13 |
|
|
Tapping/Threading die dia |
|
M10 |
|
|
②Side- Live tool |
Qty x Model |
mm |
4×ER20 |
|
Drilling dia |
mm |
φ13 |
|
|
Tapping/Threading die dia |
|
M8 |
|
|
Live tool rev speed |
rpm |
4000 |
|
|
Live tool power |
kw |
2.5 |
|
|
③Axial drilling and milling tool |
|
4×ER16（end-face） |
|
|
Machine Tool Information |
|||
|
Rapid feed speed |
m/min |
18(X1/Y2)
24(X2/Y1/Z1/Z2)
|
|
|
Feed motor power |
kw |
1.2 |
|
|
The power capacity |
vac |
380 |
|
|
Air pressure device |
mpa |
0.6 |
|
|
Weight |
T |
4.5 |
|
|
Dimensions |
mm |
3000*1450*2200 |
|
FEATURES
■ Each axis uses 30 type P-precision roller guide rail and 32 type double nut C3 screw.
■ Built-in electric spindle,hydraulic clamping,ensure high precision machining.
■ Main spindle clamping is compatible with both Push forward and pull back modes, not necessary requires large diameter grinding materials.
■ Main spindle primary processing length is 320mm with guide bush.
■ Main spindle side milling adopts ER25+ER20 with 2.3 high-power motors, combined with the spindle hydraulic brake, to improve milling efficiency and rigidity.
■ Main spindle tool holder adopts rectangular-ambulatory-plane layout,reduce machine volume,enhance the rigidity of the tool holder structure, and achieve fast tool change speed.
■ According to the requirements, up to 15 tools can be configured for the 6 axis section.
STANDARD CONFIGURATION
■ Short workpiece collector
■ Workpiece belt conveyor
■ Synchronal rotary guide bush device
■ Main spindle cross 4 axis live tool
■ Cut off tool breakage detector
■ Non guide bush
■ Y2 tool holder
OPTIONAL CONFIGURATION
■ Angular drilling head
■ Long workpiece collector
■ High pressure pump
■ Oil mist collector
■ Chip conveyor
■ Axial drilling and milling tool

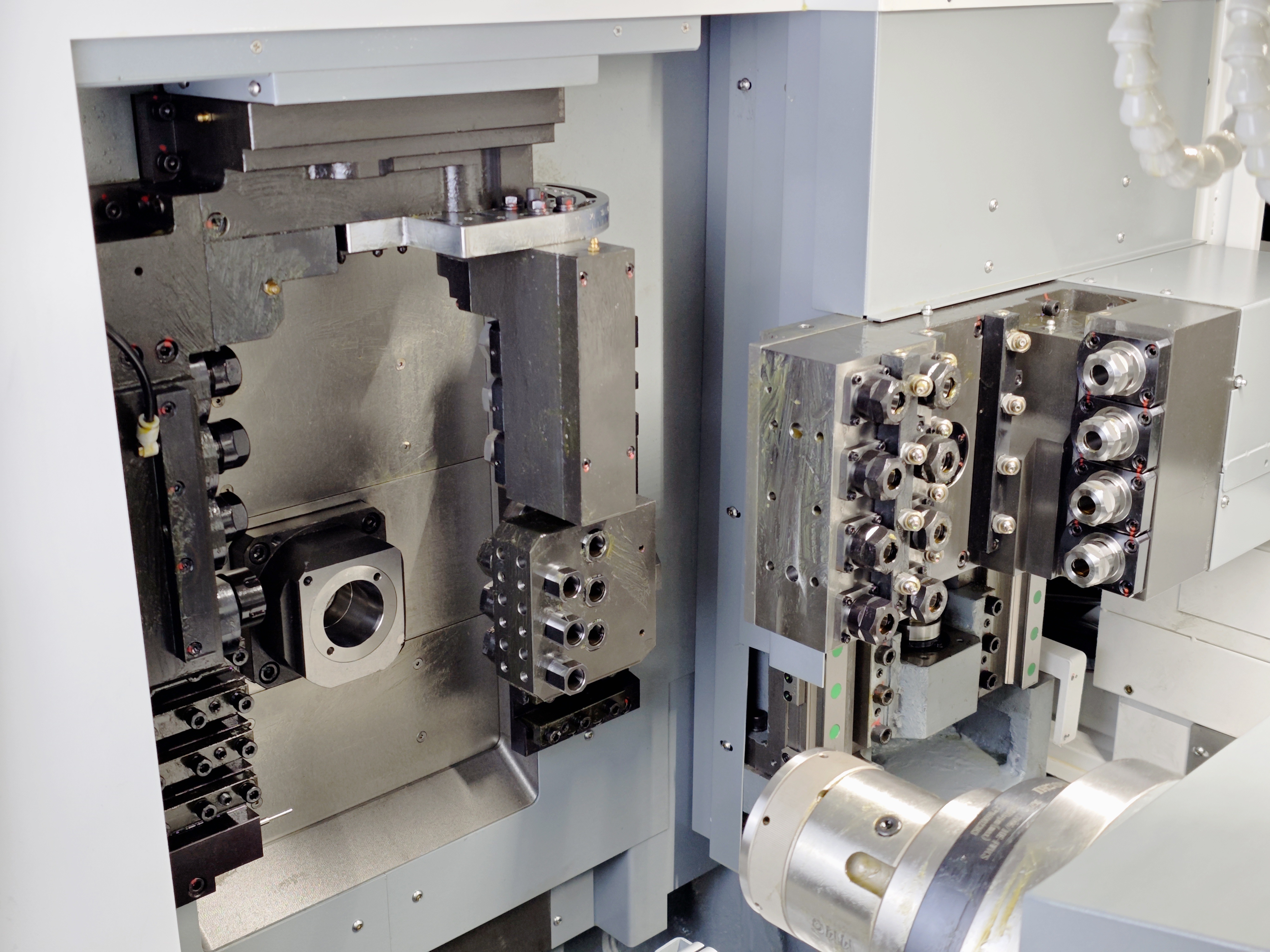

Structural Demonstration
Processing Case
