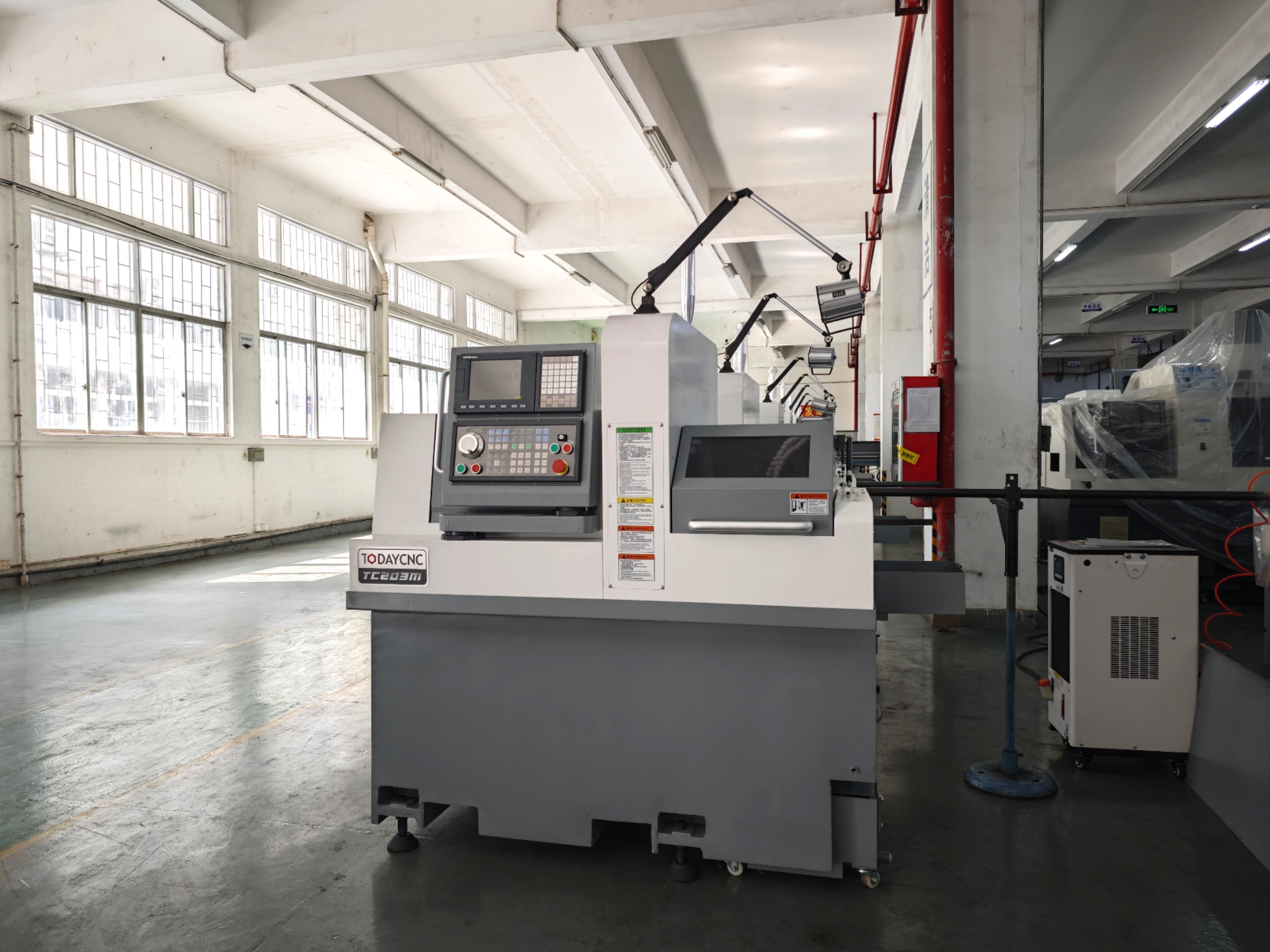

TC203M Single Spindle Swiss-type CNC lathe
产品分类：
关键词：
TC203M Single Spindle CNC Lathe
metalworking machines
swiss type cnc lathe
Swiss type automatic lathe
twin spindle machines
swiss type precision lathe
swiss type machine
Cnc swiss type automatic lathe
Twin spindle cnc turning machine
Single Spindle CNC Lathe

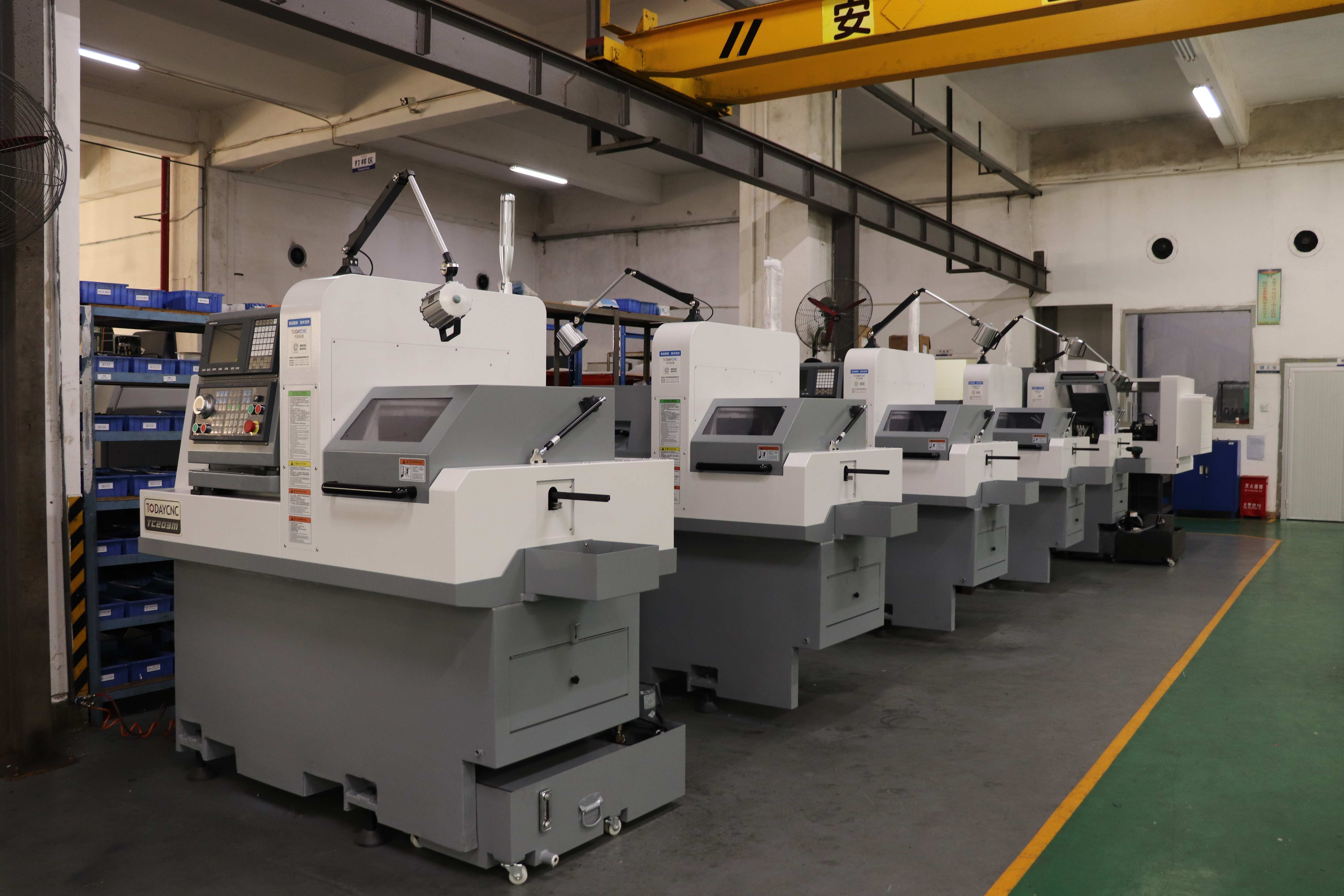

TC203M Single Spindle Swiss-type CNC lathe
TC203M
Single spindle
3-axis function
Max machining diameter: 20mm
Mechanical spindle
category:
Key words:
TC203M Single Spindle CNC Lathe
metalworking machines
swiss type cnc lathe
Swiss type automatic lathe
twin spindle machines
swiss type precision lathe
swiss type machine
Cnc swiss type automatic lathe
Twin spindle cnc turning machine
Single Spindle CNC Lathe
Details
TECHNICAL PARAMETER
| Parameters | ||||
| TC203M | 3-axis,single spindle | |||
| NC system | SYNTEC 22TB | |||
| Lathe rated power | kw | 8 | ||
| Machining range | ||||
| Maximum machining diameter | mm | φ20 | ||
| Maximum machining length (one-time clamping)With guide bush | mm | 230 | ||
| Maximum machining length (one-timeclamping)Non guide bush | mm | 2D | ||
| Main spindle power | kw | 3 | ||
| Sub spindle power | kw | —— | ||
| Main spindle max through hole dia | mm | φ23 | ||
| Main/sub spindle rev speed | rpm | 6000/-- | ||
| Sub spindle max clamping dia | mm | —— | ||
| Sub spindle max through hole dia | mm | —— | ||
| Max tool installed qty | 14 | |||
| OD Turning tool | ||||
| Qty x Model | mm | 6✖▢12 | ||
| Cross live tool | ||||
| Cross live tool | mm | 2✖ER16-2✖ER11 | ||
| Drilling dia | mm | φ10 | ||
| Tapping/Threading die dia | mm | M6 | ||
| Live tool rev speed | rpm | 5500 | ||
| Live tool power | kw | 1 | ||
| End -face tool (Mainspindle) | ||||
| Fixed | Qty x Model | mm | 4✖ER11 | |
| Drilling dia | mm | φ7 | ||
| Tapping/Threading die dia | mm | M6 | ||
| Live | Qty x Model | mm | —— | |
| Drilling dia | mm | —— | ||
| Tapping/Threading die dia | —— | |||
| Live tool rev speed | mm | —— | ||
| Live tool power | kw | —— | ||
| Back end-face tool(Sub spindle) | ||||
| Fixed | Qty x Model | mm | —— | |
| Drilling dia | mm | —— | ||
| Tapping/Threading die dia | mm | —— | ||
| End face live tool | mm | —— | ||
| Side- Live tool | mm | —— | ||
| Drilling dia | mm | —— | ||
| Tapping/Threading die dia | mm | —— | ||
| Live tool rev speed | mm | —— | ||
| Live tool power | kw | —— | ||
| Rapid feed speed | m/min | 18(X) 24(Z/Y) |
||
| Feed motor power | kw | 0.85 | ||
| The power capacity | kva | 7.5KVA | ||
| Air pressure device | mpa | 0.6 | ||
| Weight | kg | 1600 | ||
| Dimensions L*W*H | mm | 1950*1070*1650 | ||
| Main accessary brand and place of origin | ||||
| Name | Origin and brand | |||
| Operation system | Taiwan SYNTEC | |||
| Spindle and driver | Oil cooling spindle/Syntec driver | |||
| Bearing | Japan NKS | |||
| Guide rail | Japan THK | |||
| Guide screw | Japan THK | |||
| Servo Motor | Taiwan SYNTEC | |||
| Motor driver | Taiwan SYNTEC | |||
| Elextrical components | Germany Schneider | |||
| Lubricant system | Japan Herg | |||
| Relay | Japan Omron | |||
| Stroke switch | Japan Omron | |||
| Magnetic value | Taiwan airtag | |||
FEATURES
■ Each axis equipped with imported high-precision linear guide,ball screws and precise bearings.
■ Using synchronous guide bush structure,realize high-speed and high-precision machining.
■ Key components with gas sealing structure, oil and slag prevention, improving service life and stability.
■ Select high torque motor, high rigidity and high strength slipway for each axis and tool installation seat to meet the requirements of large cutting volume and high processing efficiency.
■ High scalability, tool quantities matched with different requirements of processing, reaching great cost-effective.
■ Extended Z-axis travel can reach 230mm, significantly reduce feeding times and improve processing efficiency.
STANDARD CONFIGURATION
■ SYNTEC numerical control system
■ Main pneumatic chucking device
■ Movable guide bush
■ Synchronal rotary guide bush device
■ Live tool
OPTIONAL CONFIGURATION
■ MITSUBISHI numerical control system
■ FANUC numerical control system
■ High pressure pump
■ Oil mist collector
■ Chip conveyor

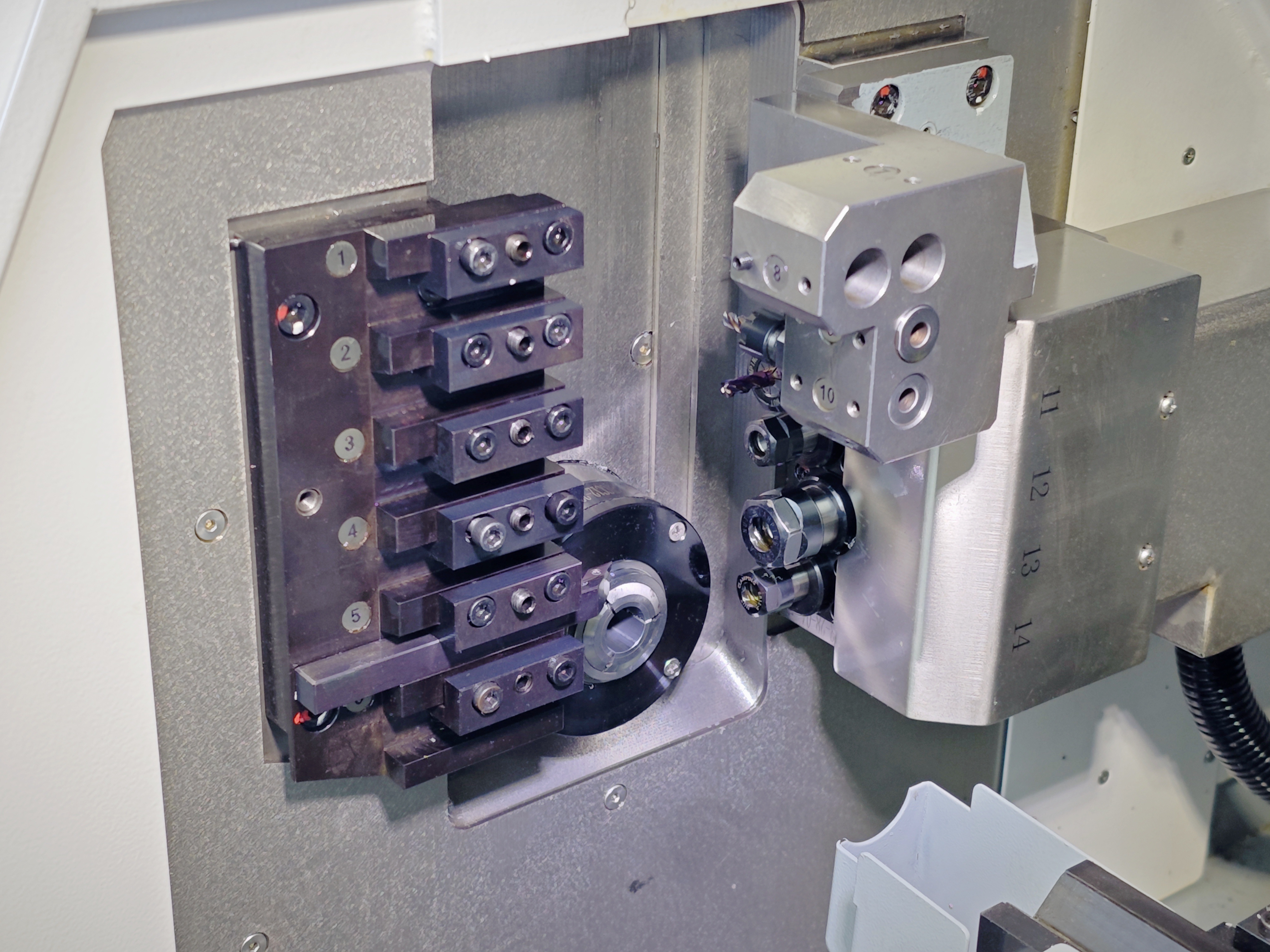

Structural Demonstration
Processing Case
Provide personalized and customized service solutions tailored to specific needs, ensuring efficient and accurate solutions.
