TC126 Six axis Swiss-type CNC lathe

TC126

Double spindle
6-axis function
Max machining diameter: 12mm
Motorized spindle

category:

Key words:

TC126 Dual Spindle CNC Lathe

swiss type cnc lathe

twin spindle machines

swiss machining

high precision mini lathe

cnc sliding head machine

Dual spindle dual turret lathe

Dual Spindle CNC Lathe

CNC lathe with bar feeder

CNC sliding head turning

Cnc swiss type automatic lathe

Single Spindle CNC Lathe

CNC Swiss type lathe

Now Inquiry

Details

TECHNICAL PARAMETER

Model



TC126 SYNTEC

TC126 FANUC





6 axis,dual spindle

6 axis,dual spindle

NC system



SYNTEC 220TB

FANUC Oi-TF Plus

Lathe rated power

kw

12

12

Machining range
Maximum machining diameter

mm

φ12

φ12

Maximum machining length (one-time clamping)With guide bush

mm

190

190

Maximum machining length (one-timeclamping)Non guide bush

mm

2D

2D

Max tool installed qty



24

24

Main/sub spindle
Main spindle power

kw

1.5/2.2

1.5/2.2

Sub spindle power

kw

1.5/2.2

1.5/2.2

Main spindle max through hole dia

mm

φ13

φ13

Main/sub spindle rev speed

rpm

12000/12000

12000/12000

Sub spindle max clamping dia

mm

φ12

φ12

Sub spindle max through hole dia

mm

φ13

φ13

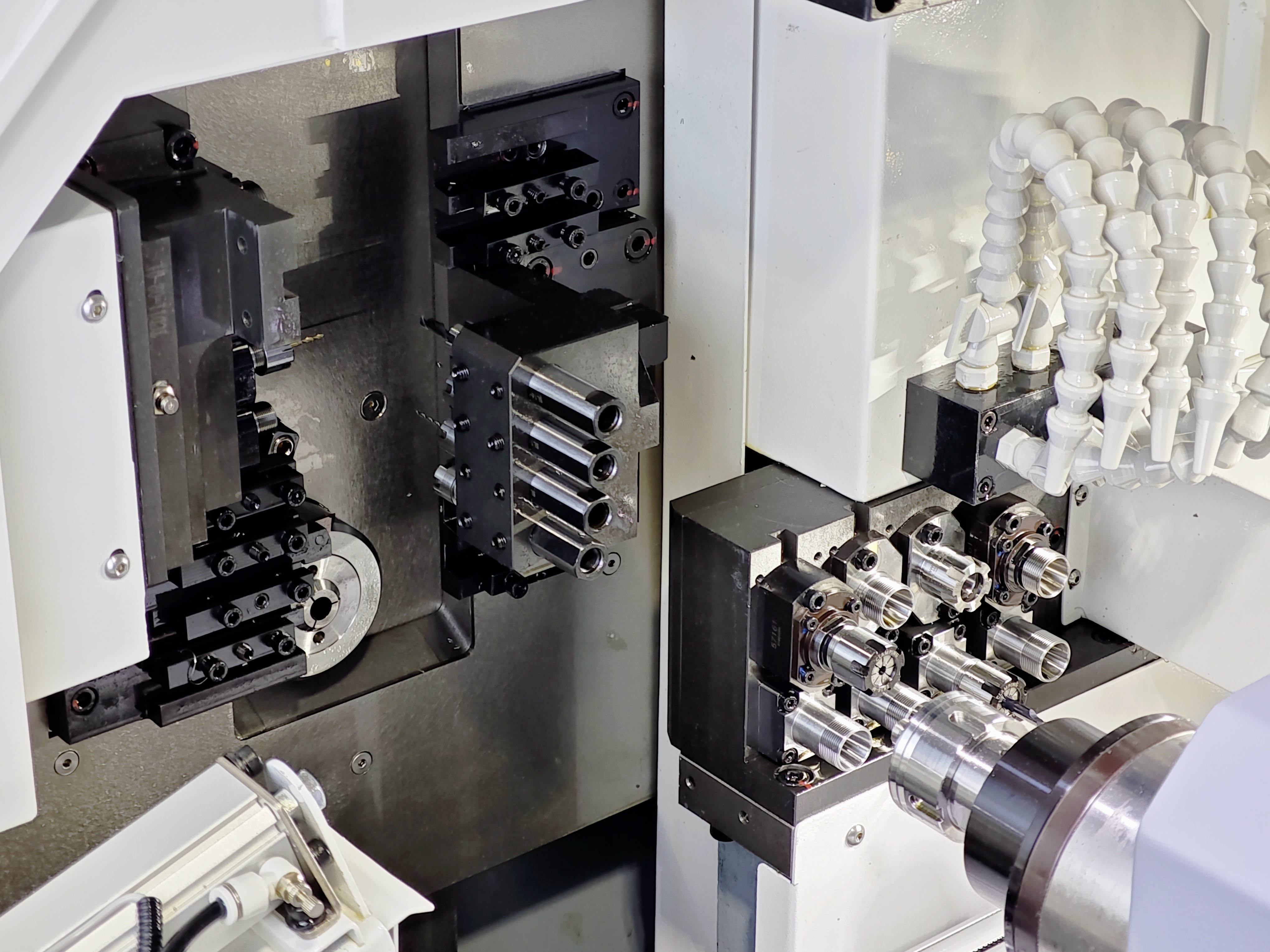

Main spindle tool
 OD Turning tool Qty x Model



8X□10

8X□10

 Side- Live tool  Qty x Model



3×ER111×ER16

3×ER111×ER16

Drilling dia

mm

φ10

φ10

Tapping/Threading die dia



M5

M5

Live tool rev speed

rpm

6000

5000

Live tool power

kw

1

1

 End face fixed tool Qty x Model



4×ER11

4×ER11

Drilling dia

mm

φ7

φ7

Tapping/Threading die dia



M5

M5

Sub spingdle tool
 End face fixed tool Qty x Model



4×ER16

4×ER16

Drilling dia

mm

φ7

φ7

Tapping/Threading die dia



M5

M5

 End face live tool  Qty x Model

mm

4×ER16

4×ER16

Drilling dia

mm

φ7

φ7
Tapping/Threading die dia



M5

M5
Live tool rev speed

rpm

6000

5000
Live tool power

kw

1

1

Additional Information
Rapid feed speed

m/min

32(X1/X2/Y1/Z1/Z2)
24(Y2

32(X2/Y1/Z1/Z2)
24(X1/Y2)
Feed motor power

kw

1

0.75

The power capacity

vac

380

380

Air pressure device

mpa

0.6

0.6

Cooling box capacity

L

120

120

Weight

T

1.8

1.8

Dimensions

mm

1900X1200X1750

1900X1200X1750



FEATURES

■ Each axis equipped with imported high-precision linear guide,ball screws and precise bearings.
■ Using synchronous guide bush structure,realize high-speed and high-precision machining.
■ With guide bush or without guide bush switching flexiblely to meet different needs of processing.
■ Key components with gas sealing structure, oil and slag prevention, improving service life and stability.
■ Select high torque motor, high rigidity and high strength slipway for each axis and tool installation seat to meet the requirements of large cutting volume and high processing efficiency.
■ High scalability, tool quantities matched with different requirements of processing, reaching great cost-effective.



STANDARD CONFIGURATION

■ SYNTEC numerical control system
■ Main pneumatic chucking device
■ Movable guide bush
■ Synchronal rotary guide bush device
■ Live tool
■ Workpiece belt conveyor



OPTIONAL CONFIGURATION

■ Non guide bush
■ MITSUBISHI numerical control system
■ FANUC numerical control system
■ High pressure pump
■ Oil mist collector
■ Chip conveyor
■ Long workpiece collector

Processing Case

Provide personalized and customized service solutions tailored to specific needs, ensuring efficient and accurate solutions.

Mouthpiece filter

Material: Aluminum

Solenoid valve core

Material: Aluminum

Sensor parts

Material: SUS416

Scotch fork parts

Material: Easy to cut iron

Clock parts

Material: SUS316

FAQ

What service do you offer?

1、Pre sales service: We offers free basic training to technical personnel sent by the buyer at our factory for CNC lathe operation, debugging, maintenance learning and so on; 2、In sales service: For buyer local training, we can negotiate together. 3、After sales service: For equipment malfunction complaints, both the supply and buyer parties shall communicate in detail about the specific malfunction in advance. If it is determined that the malfunction can be solved by the buyer, the supplier shall provide specific guidance through phone, video, etc. If it is a fault that must be resolved on-site by the supplier, the supplier must respond within 24 hours after determining the fault and provide a solution and expected on-site resolution schedule. After exceeding the one-year warranty period, a certain amount of material and labor fees can be charged appropriately.

What is your warranty policy?

Warranty: except spindles, the whole lathe and the auxiliary equipment is 1 year; Lathe spindle is 2-years. Consumable parts not included in warranty. Under normal use, there is a free service warranty for damage. If the equipment is damaged due to improper use by the buyer, the supplier will only charge material fees within warranty period, and material and labor fees will be charged after warranty period. The supplier shall provide paid services /spare parts to the buyer for a long time after warranty period.

Why should I buy from you?

As an integrated solution provider, we have accumulated a wealth of practical application cases across various sectors and solved various complex machining problems. This allows us to provide clients with precise technical support and customized solutions to meet the complex machining needs of various industries. Time study and process report could also be provided based on the drawings provided for our customers freely. When the buyer encounters difficult issues or high technical requirements during the use of the equipment, the supplier can provide remote technical guidance. If the supplier is required to debug and program on behalf of the supplier, the supplier will only charge the reasonable costs.

What’s the function of ou machines?

Our machines are mainly for metal small, precision, complex parts mass production.

What products series do you have?

We have a full product series of 12/20/26/32/38 series, covering a machining range of 1-42mm bar.

Who we are?

TODAYCNC, founded in 2007 and headquartered in Shenzhen China is a national high-tech enterprise focusing on R&D, manufacturer and sales of CNC automatic Swiss type lathes. We‘ve installed thousands of machines worldwide with high reputation.

What’s your lead time?

Generally speaking, we have half finished machines in stock, the leadtime is about 30-45 days based on different control system and different quantity.

How you control quality?

As an ISO9001 and SGS audited enterprise, from design to production, from procurement to production, each step is strictly controlled and record to make sure all the products are in compliance with international high quality standards.

What is the application of your machine?

The machines are widely used in the fields of automobile, medical, aviation, defense, 3C industries etc. We are able to quickly develop, design, assemble and debug customized models according to customers’ special requirements and realizes the “Turnkey" project

What markets do you have?

As an highly beloved and involved brand, the company has set up offices in Suzhou, Hangzhou, Ningbo, Tianjin, Xi'an, Chongqing and authorized agents in Shandong, Henan provinces to form a domestic sales and service network. Meanwhile, the overseas market is also becoming more and more mature, our products were widely delivered to European, Asian, North American, south American, African countries and so on, which are highly praised by overseas distributors and end users.

What is your mission?

TODAYCNC continues to introduce high-end technologies and equipment, increase investment in research and development, continuously improve product quality and service system. Adhering to the mission of Standards drive innovation and Quality achieves brand", the company provides customers with safe, reliable and efficient professional production equipment.
