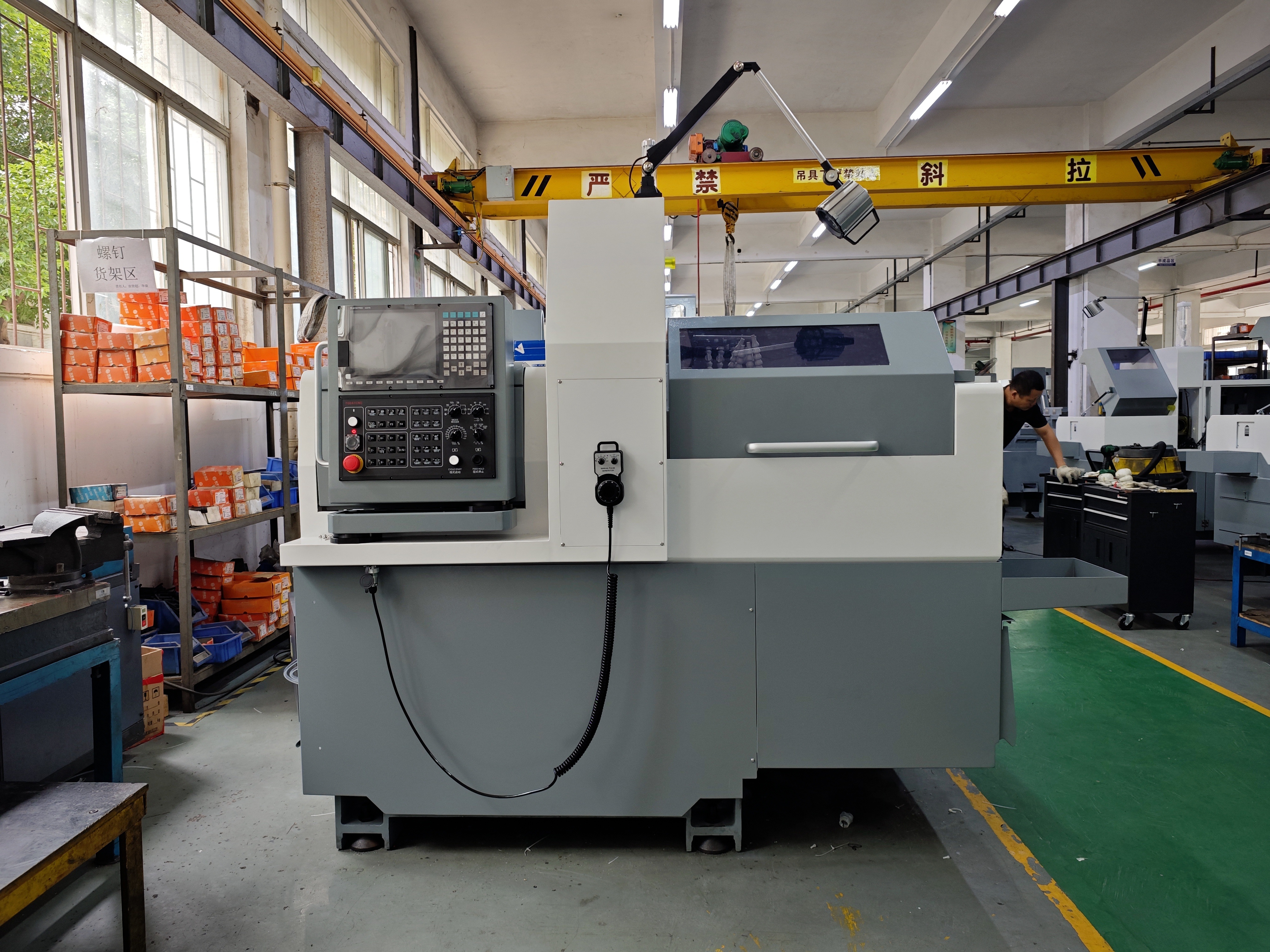

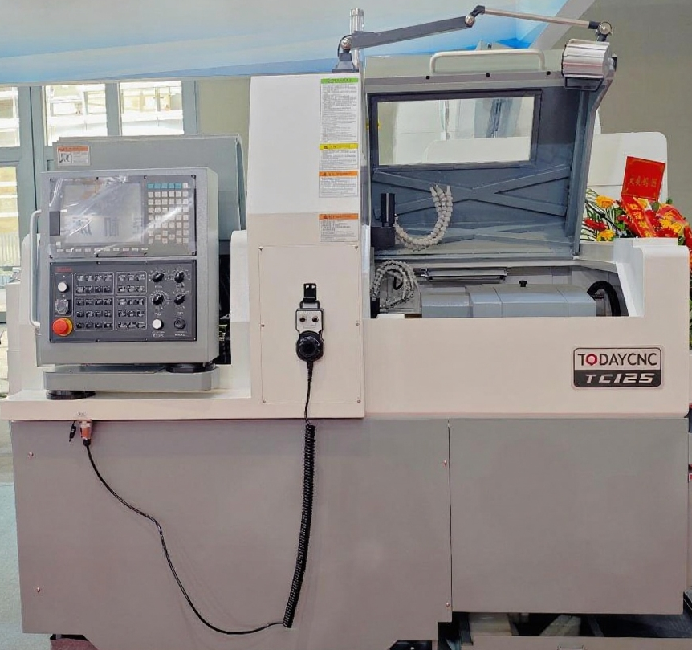

TC125 Dual Spindle CNC Lathe
TC125 Dual Spindle CNC Lathe

TC125 Dual Spindle CNC Lathe

产品分类:

关键词:

TC125 Dual Spindle CNC Lathe

swiss type cnc lathe

Swiss type automatic lathe

swiss type machine

tornos cnc machine

metalworking machines

Dual spindle dual turret lathe

在线询价

TC125 Dual Spindle CNC Lathe

TC125

Double spindle
5-axis function
Max machining diameter: 12mm
Motorized spindle

category:

Key words:

TC125 Dual Spindle CNC Lathe

swiss type cnc lathe

Swiss type automatic lathe

swiss type machine

tornos cnc machine

metalworking machines

Dual spindle dual turret lathe

Now Inquiry

Details

TECHNICAL PARAMETER

Model   TC125
    5axis,dual spindle
NC system   SYNTEC 220
Lathe rated power                                          kw 12
Machining range
Maximum machining diameter                                  mm φ12
Maximum machining length (one-time clamping)With guide bush                                                mm 200
Maximum machining length (one-timeclamping)Non guide bush                                            mm 2.5D
Max tool installed qty   20
Main/sub spindle
Main spindle power                                             kw 1.5/2.2
Sub spindle power                                              kw 1.5/2.2
Main spindle max through hole dia                       mm φ13
Main/sub spindle rev speed                                  rpm 12000/12000
Sub spindle max clamping dia                            mm φ12
Sub spindle max through hole dia                        mm φ13
Main spindle tool
①OD Turning tool Qty x Model                         8
② Side- Live tool Qty x Model                         3×ER11+1×ER16
Drilling dia                        mm φ10
Tapping/Threading die dia   M5
Live tool rev speed               rpm 6000
Live tool power                   kw 1
③End face fixed tool Qty x Model                          4ER11
Drilling dia                         mm φ7
Tapping/Threading die dia   M5
Sub spingdle tool
①End face fixed tool Qty x Model                       4×ER11
Drilling dia                      mm φ7
Tapping/Threading die dia   M5
①End face live tool Qty x Model                     mm -
Drilling dia                      mm -
Tapping/Threading die dia   -
Live tool rev speed               rpm -
Live tool power                   kw -
Machine Tool Information
Rapid feed speed                                           m/min 32(X1/X2/Y1/Z1/Z2)
24(X1)
Feed motor power                                            kw 1
The power capacity                                             vac 380
Air pressure device                                  mpa 0.6
Cooling box capacity L 120
Weight                                                          T 1800
Dimensions                                      mm 1900X1150X1750



FEATURES

■ Each axis equipped with imported high-precision linear guide,ball screws and precise bearings.
■ Using synchronous guide bush structure,realize high-speed and high-precision machining.
■ With guide bush or without guide bush switching flexiblely to meet different needs of processing.
■ Key components with gas sealing structure, oil and slag prevention, improving service life and stability.
■ Select high torque motor, high rigidity and high strength slipway for each axis and tool installation seat to meet the requirements of large cutting volume and high processing efficiency.
■ High scalability, tool quantities matched with different requirements of processing, reaching great cost-effective.



STANDARD CONFIGURATION

■ SYNTEC numerical control system
■ Main pneumatic chucking device
■ Movable guide bush
■ Synchronal rotary guide bush device
■ Live tool
■ Workpiece belt conveyor



OPTIONAL CONFIGURATION

■ Non guide bush
■ MITSUBISHI numerical control system
■ FANUC numerical control system
■ High pressure pump
■ Oil mist collector
■ Y2 tool holder
■ Chip conveyor
■ Long workpiece collector

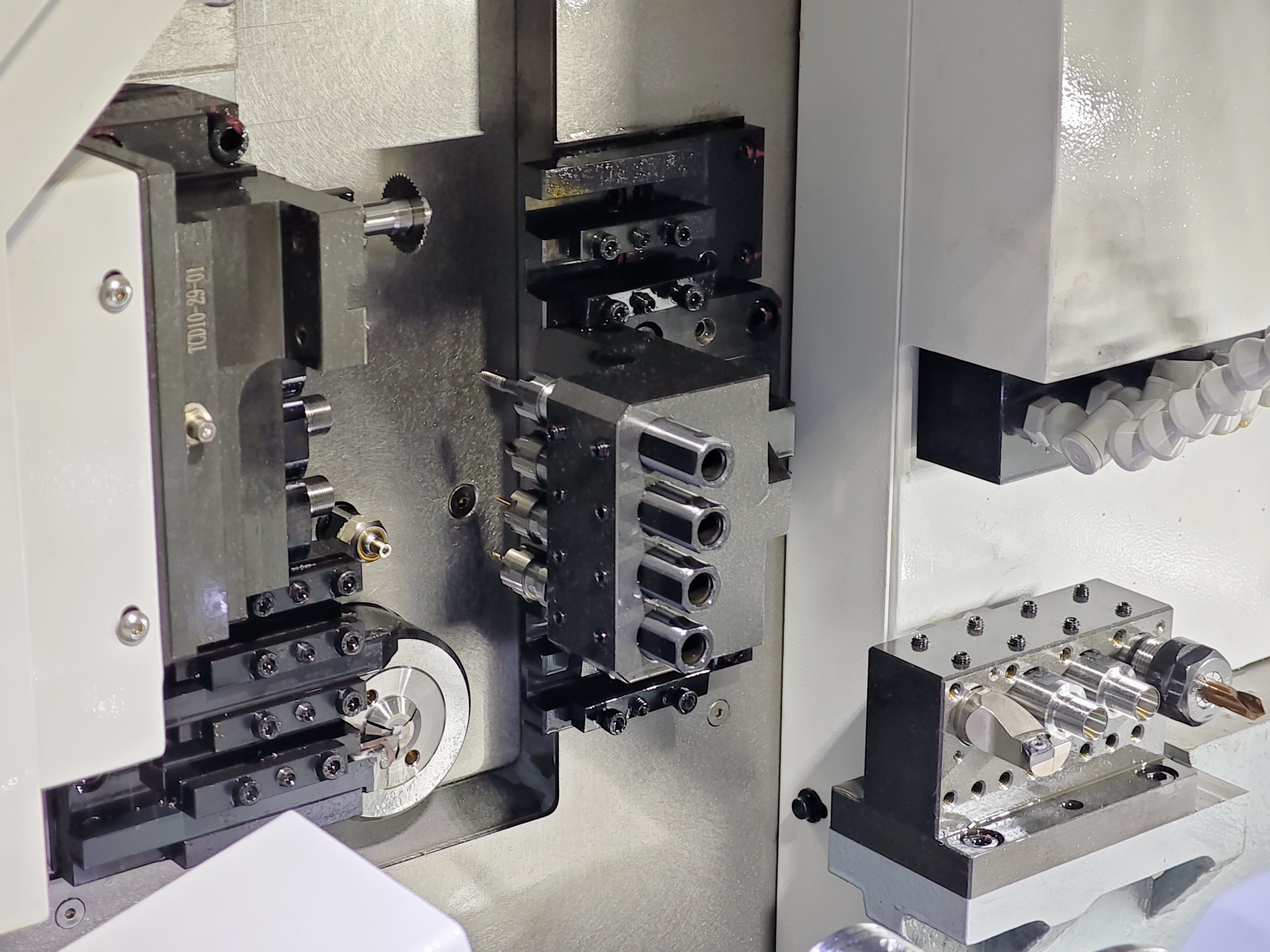

Structural Demonstration



Processing Case

Provide personalized and customized service solutions tailored to specific needs, ensuring efficient and accurate solutions.

Mouthpiece filter

Material: Aluminum

Solenoid valve core

Material: Aluminum

Sensor parts

Material: SUS416

Scotch fork parts

Material: Easy to cut iron

Clock parts

Material: SUS316
